Embedded portfolio case studyFinal baseline V1.0.26
Velo
A compact embedded system that remembers, updates, verifies, and recovers.
Built across firmware, touch UI, hook LEDs, Wi-Fi, Node-RED cloud flows, signed release tooling, fallback recovery, and board-level validation.

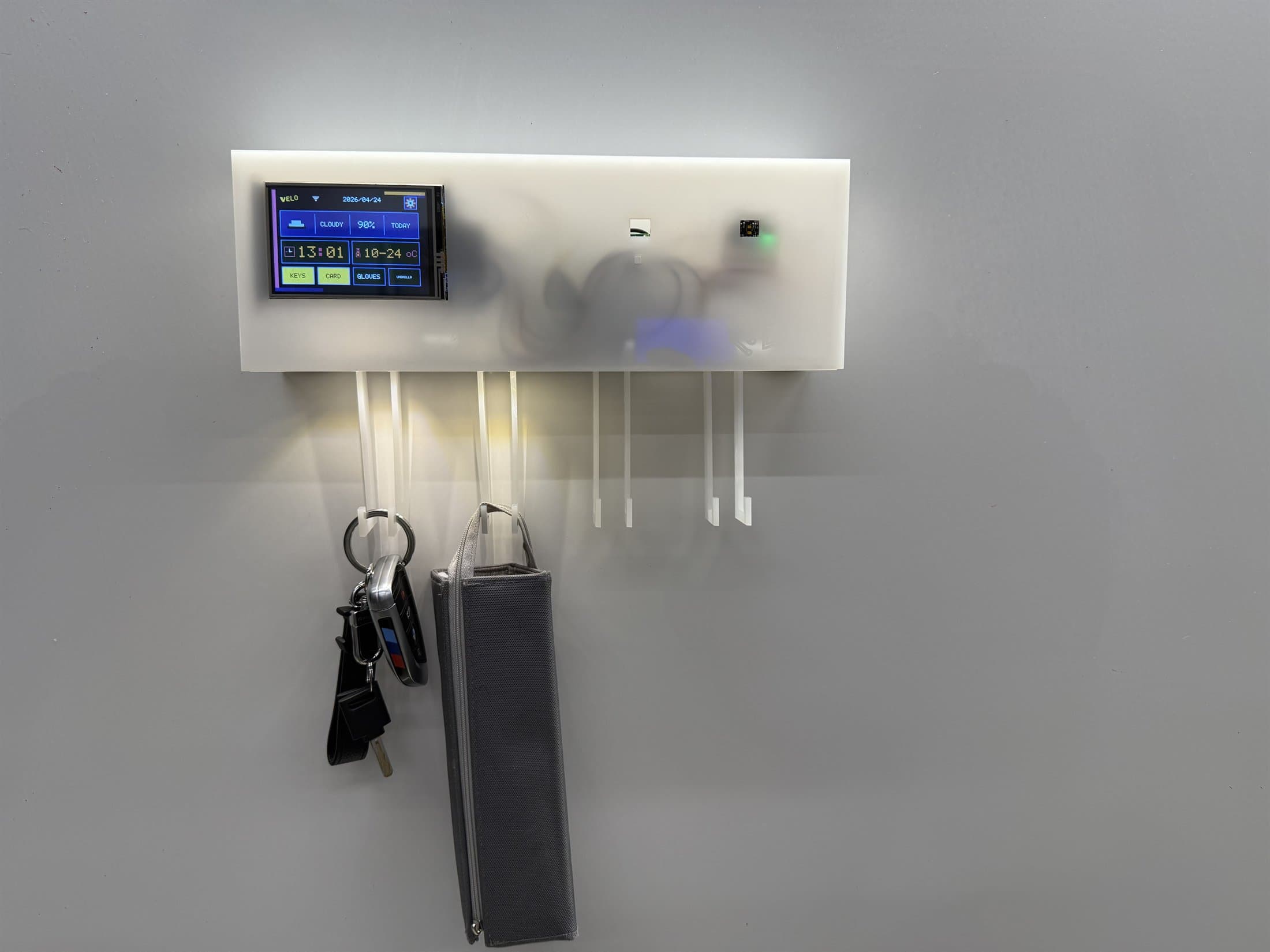

Installed prototype

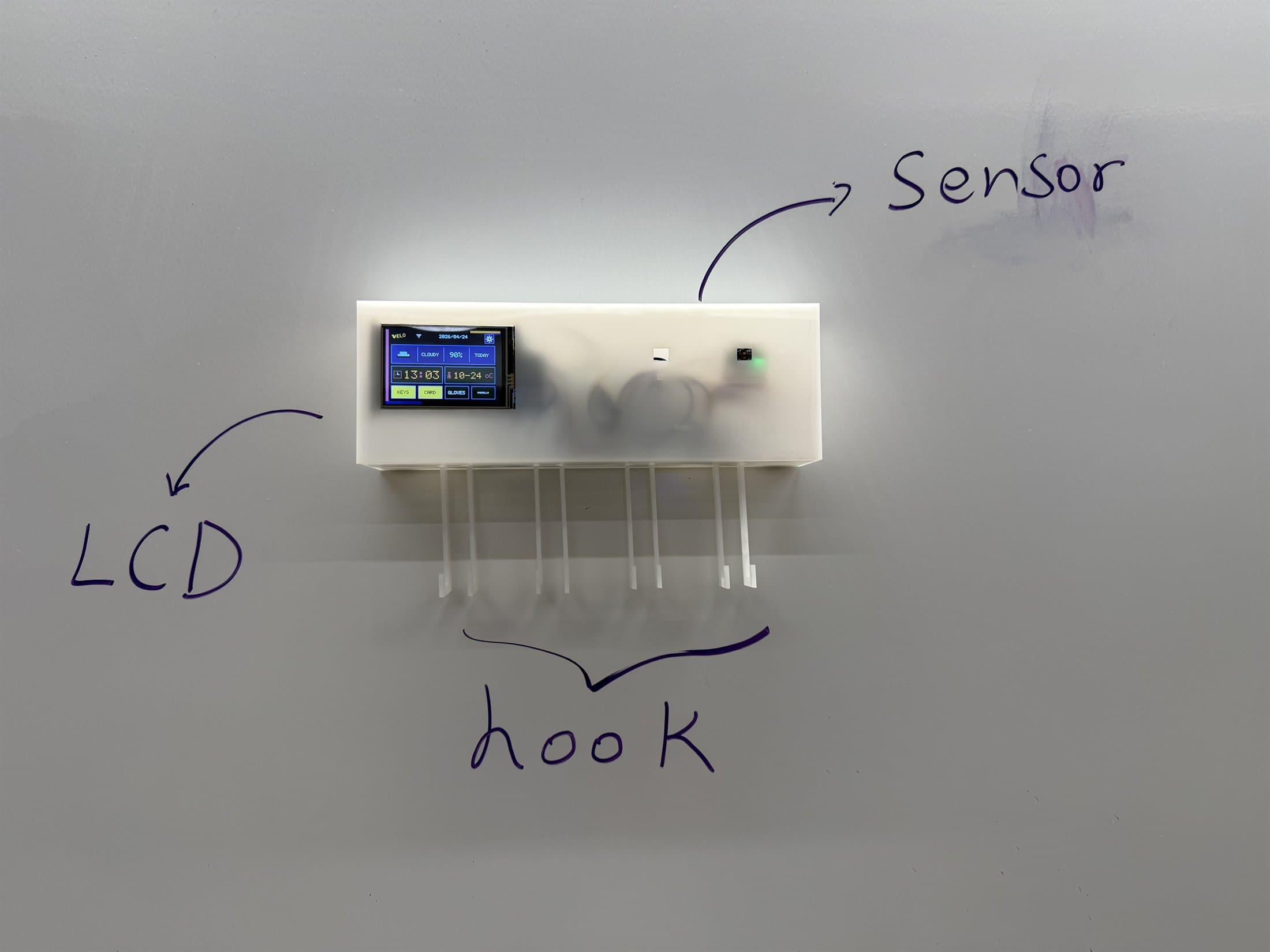

Whiteboard-mounted Velo with the product surface visible.ReliablereadyHandydailySmartaware
A/B
Release model - Slot-aware inactive-slot release flow
Ed25519
Manifest security - Signed manifest and payload hash binding
V1.0.26
Frozen baseline - Signed tool-generated release with reset proof
Get the proof highlights.
Release
The desktop tool turns firmware into signed A/B releases.
Slot A, slot B, manifest signing, upload, and endpoint verification run as one flow.
Security
A signed OTA survives reboot and hardware reset.
The proof path shows check, install, reset persistence, and confirmed firmware state.
Recovery
Bad packages and fallback are shown as product behavior.
Negative releases are rejected or recovered from, not hidden as lab-only failures.
Cloud
Node-RED routes weather, reminders, OTA, and rollback state.
The cloud flow is part of the deliverable, not an invisible backend assumption.More than a UI demo
Update. Verify. Recover.
The project is deliberately built as a complete engineering story: the device has a product surface, a release pipeline, a security policy, and negative tests that prove the system refuses unsafe updates.
A real product surface
Touch UI, weather context, Wi-Fi setup, reminder state, and hook LEDs work as one door-side experience.
A release system, not a demo button
The desktop tool builds slot A and slot B packages, signs manifests, uploads to cloud, and verifies both latest endpoints.
A failure story with evidence
Bad signatures, bad payloads, fallback, reset persistence, network timeout, and the LED/OTA interaction fix are documented.
Validation as a feature
The impressive part is not only that it works.
It also shows what happens when a release is wrong: a forged manifest is rejected, a modified payload fails install, and a trial image can fall back to the confirmed slot.
See proof pageV1.0.26Signed OTA confirmed after RST
check failedBad manifest stopped before install
0x46Bad payload rejected during install
Try the OTA labInteractive release paths Team
Built by Team 12: Velo.
A two-person embedded systems team turned the project from board bring-up into a validated product-style system with firmware, cloud release flow, OTA recovery, and presentation evidence.
Jiaan Zhang
Led the system from board bring-up to final release proof
- Designed and debugged the PCB, brought up the board, integrated LCD, touch, ToF, and hook LEDs, and turned signal checks into hardware evidence.
- Built the firmware architecture, RTOS flow, product UI, Wi-Fi, weather, reminder services, storage behavior, and hook LED control.
- Completed the A/B OTA system, fallback recovery, Ed25519 signed manifests, payload hash binding, Node-RED release flow, Velo OTA Release Tool, validation gallery, and showcase site.
Tiancheng Pu
Supported the physical build and enclosure path
- Supported PCB name/label placement and selected wiring-debug work during hardware bring-up.
- Designed, cut, and assembled the enclosure support structure for the final physical device.
